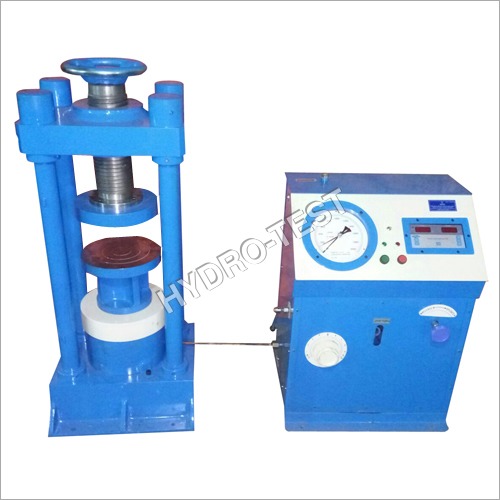

Digital Compression Tester

Get a Price/Quote

MOQ : 1 Piece

Digital Compression Tester Specification

Display Type
Digital LED/LCD

Power
220 W

Voltage
220 V

Color
Blue & White

Frequency
50/60 Hz

Control Mode
Digital Control

Weight
Approx 50 kg

Frame Type
C-type Frame

Features
Portable design, digital control, user-friendly interface, overload protection.

Gauge
Digital Pressure Gauge

Dimension (L*W*H)
620 x 320 x 950 mm

Load Power
100 kN

Capacity
100 kN (customizable)

Product Type
Digital Compression Tester

Stroke
50 mm

Usage & Applications
Used for testing compressive strength of materials such as concrete cubes and cylinders.

Accuracy
1% of indicated value

Phase
Single Phase

Speed Range
0-50 mm/min

Power Supply
AC Mains

Automation Grade
Automatic

Operating Temperature
10C to 40C

Software
PC connectivity for data logging and analysis

Calibration
Factory calibrated with calibration certificate

Data Output
USB/RS232

Safety Features
Overload and overtravel protection

Ambient Humidity
Up to 85% RH

Language Support
Multi-language interface

Material of Construction
Mild steel frame with powder coating

Maximum Load Indicator
Yes

Sample Size Compatibility
Up to 150 mm cubes/cylinders

Digital Compression Tester Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
50 Pieces Per Month

Delivery Time
1 Week

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Wooden boxes

Main Domestic Market
All India

About Digital Compression Tester

Backed by a team of highly skilled and experienced professionals, we are engaged in manufacturing and supplying Digital Compression Testing Machine for our clients. Precisely designed, the offered range is highly acknowledged in laboratories and construction site to test the compressive strength of different material. In order to fulfill diverse requirements of our esteemed clients, we offer this machine with different technical specifications. Apart from this, our provided Digital Compression Testing Machine are available in the market at most reasonable rates.

Product Specification :

Material	Mild Steel
Grade	Semi-Automatic
Usage/Application	Laboratory
Type Of Testing Machines	compression tester
Color	Blue
Packaging Type	Wooden Box
Display Type	Digital
Minimum Order Quantity	1

High Precision and Safety in Material Testing

Engineered for testing compressive strength, this tester incorporates factory calibration and a digital pressure gauge, ensuring repeatable accuracy (1%). Safety is paramount, with built-in overload and overtravel protection safeguarding the equipment and users during tests.

Convenient Data Management and Analysis

The machine supports USB and RS232 data outputs, enabling direct connection to PCs for analysis and documentation. The supplied software simplifies data logging, result storage, and real-time monitoringensuring efficient workflow and recordkeeping.

User-Friendly and Versatile Design

With its multilingual digital interface, compact construction, and automatic controls, the device is accessible for users of varying backgrounds. The portable construction and compatibility with single-phase AC mains power allow flexible placement and ease of operation across different locations.

FAQs of Digital Compression Tester:

Q: How does the Digital Compression Tester ensure accurate results?

A: The tester is factory calibrated and comes with a calibration certificate, guaranteeing 1% accuracy of the indicated value. Its digital pressure gauge and automated controls further minimize manual errors during compressive strength testing.

Q: What types of samples can be tested with this machine?

A: It is compatible with cubes or cylinders up to 150 mm, covering standard sizes required in concrete and construction materials testing.

Q: How do I retrieve and analyze the data collected by the tester?

A: Data output is available through USB or RS232 ports. You can connect the tester directly to a PC, using the included software to log, analyze, and store compression test data efficiently.

Q: What are the key safety features of this compression tester?

A: The tester includes overload and overtravel protection mechanisms, safeguarding both the user and the equipment by preventing excessive force application or movement beyond the devices capacity.

Q: When is calibration required for this device?

A: The machine is provided factory-calibrated with a certificate, so initial recalibration is not necessary. Periodic recalibration is recommended following industry standards or if the device is subject to rigorous use.

Q: Where can this Digital Compression Tester be used?

A: This device is ideal for laboratory environments, educational institutions, and construction sites in need of portable, accurate compressive strength measurement equipment, particularly in settings with 10C to 40C temperature and up to 85% humidity.

Q: What are the benefits of its automatic digital controls and multilingual interface?

A: Digital automation streamlines testing and reduces user intervention, increasing consistency. The multi-language interface broadens usability among diverse operators, ensuring efficiency and safe operation throughout the testing process.
