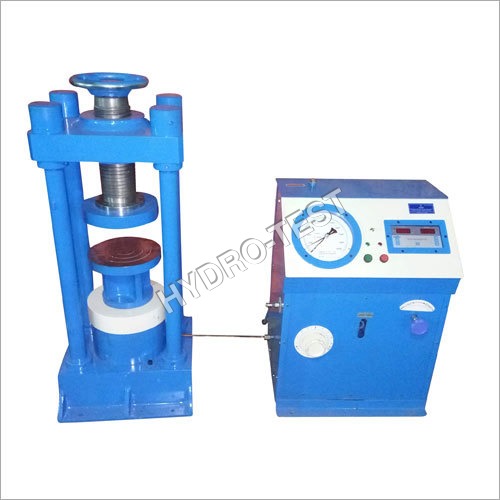

Cube Testing Machine

Name: Cube Testing Machine
Brand: HYDRO-TEST INSTRUMENTS
Price: 25000 INR
Availability: InStock

Price 25000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cube Testing Machine Specification

Phase
Single/Three Phase

Voltage
220-240 V Volt (v)

Dimension (L*W*H)
900 mm x 600 mm x 1500 mm Millimeter (mm)

Power Supply
Electric

Speed Range
20-80 SPM

Display Type
Analog

Color
Blue/Grey

Power
2 HP Horsepower (HP)

Control Mode
Manual and foot switch

Load Power
2 kW

Stroke
80 mm

Accuracy
0.02 mm mm

Usage & Applications
Threading and forming pillar nuts

Gauge
Customizable Gauge

Weight
Approx. 350 kg Kilograms (kg)

Features
Sturdy construction, low maintenance, high precision, adjustable stroke

Frequency
50/60 Hz Hertz (HZ)

Capacity
15 tons Ton

Product Type
Pillar Nut Model Machine

Frame Type
Pillar type

Cube Testing Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
50 Pieces Per Month

Delivery Time
1 Week

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Wooden boxes

Main Domestic Market
All India

About Cube Testing Machine

Pillar Nut Model Machine is designed for concrete testing to ensure to provide precise results. The load frame is developed using high-quality steel construction having a rigid upper lead carrying a ball seated platen. It comes with 4 pillars that are fixed to the base and the top plate. The lower and upper plates are adjusted using head screw on either side of the pillar. This is available in different ram diameters according to the various needs of the clients. In addition to this, it is duly calibrated after inspecting and analyzing with a compression level indicator.

Sturdy Construction for Reliable Performance

Crafted from cast iron with hardened steel guides, the Pillar Nut Model Machine delivers exceptional durability required for industrial environments. Its pillar-type frame enhances rigidity, supporting high-precision nut forming and extended operational life. The protective cover and robust build contribute to safe and steady performance even during intensive use.

Enhanced Efficiency & Quick Adjustments

This machine features a quick-change die system and manual ram adjustments, minimizing downtime and enabling swift setup changes. With adjustable stroke and speed (20-80 SPM), operators can tailor the machine to specific threading and nut-forming needs, optimizing productivity for various batch sizes in manufacturing.

Safe, User-Friendly Operation

Equipped with an emergency stop button, protective cover, and a simple hand control interface with an indicator, the machine prioritizes operator safety and straightforward operation. The analog display and option for manual or foot switch control promote ease of use, so both new and seasoned operators can work confidently.

FAQs of Pillar nut model machine:

Q: How does the Pillar Nut Model Machine ensure accurate nut forming?

A: The machine maintains high precision (0.02 mm) through its cast iron construction, hardened steel guides, and adjustable stroke mechanism. Its robust frame and precise adjustment controls help deliver consistent and accurate nut threading and forming.

Q: What materials are used in constructing this machine?

A: The primary materials include a cast iron body for durability and stability, combined with hardened steel guides to ensure accurate and wear-resistant movement during operation.

Q: When should the centralized automatic lubricator be checked or refilled?

A: The centralized automatic lubricator is designed for minimal maintenance, but it is advisable to check lubricant levels periodically according to your facilitys maintenance schedule or after extended periods of continuous operation.

Q: Where can the machine be installed and what are its space requirements?

A: The machine can be installed in standard industrial workshops with sufficient power supply (220-240 V, single or three phase). It requires a floor space of at least 900 mm x 600 mm, with a height clearance of 1500 mm for proper placement and ventilation.

Q: What is the process for changing dies on this model?

A: This machine features a quick-change die system, allowing operators to swiftly replace standard nut forming dies using the provided tools. Simply disengage the locking mechanism, extract the worn die, and insert the new die before resecuring.

Q: How is operator safety addressed during machine operation?

A: Operator safety is enhanced by an emergency stop button, a protective cover, and a simple analog control interface. These features work together to safeguard against accidental contact and enable rapid shutdown during emergencies.

Q: What are the main benefits of using this machine for nut forming applications?

A: Key benefits include sturdy construction for longevity, low maintenance due to automatic lubrication, high accuracy, customizable gauges, and the ability to quickly adjust for different production requirements. These features ensure reliable, efficient, and precise nut manufacturing.
