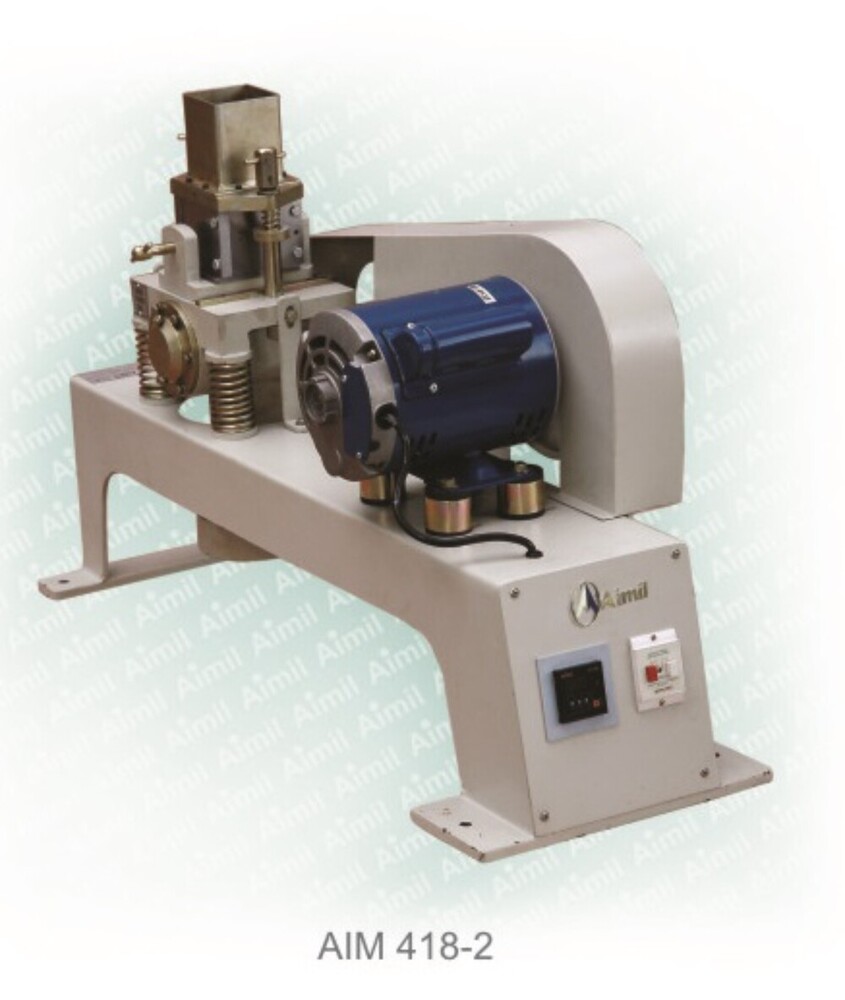

Vibrating Machine

Get a Price/Quote

MOQ : 1 Unit

Vibrating Machine Specification

Motor Power
0.5 HP

Operating Temperature
0C to 50C

Drive
Motor Driven

Production Capacity
Up to 6 Cubes per Batch

Power Rating
0.37 kW

Frame Type
Robust Steel Frame

Noise Level
Low

Accuracy
High Precision

Model No
Standard

Cooling System
Air Cooled

Machine Type
Vibration Compaction Machine

Frequency
50 Hz

Control System
Timer Controlled

Features
Heavy-duty construction, Uniform vibration

Lubricating System
Grease Lubrication

Voltage
220 V AC

Product Type
Vibrating Machine

Technology
Manual and Mechanical

Power Source
Electric

Operating Type
Semi Automatic

Power
1/2 HP

Surface Treatment
Powder Coated

Dimension (L*W*H)
600 x 600 x 1120 mm (approx)

Weight (kg)
60 Kg (approx)

Color
Blue-Grey

Usage & Applications
For making cement concrete specimens for compression strength tests

Maximum Load on Table
140 kg

Included Accessories
Cube Moulds, Operating Manual

Installation Type
Floor Mounted

Packing Type
Wooden Box

Maintenance
Low Maintenance Required

Timer Range
0 to 99 minutes

Table Top Size
50 cm x 50 cm (approx)

Power Cable Length
2 meters

Working Speed
12,000 ± 400 vibration/min

Amplitude
0.5 mm to 1 mm adjustable

Vibrating Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
2 Units Per Week

Delivery Time
1 Week

About Vibrating Machine

Vibrating Machine With Digital Timer & Mould, manufactured and supplied is a specially designed Vibration Machine, featured with springs. It can also resist the vibrations made by the eccentric shaft. It has lightweight make and a simple design that enables it to attain simple assembly as well as effortless dismantling. Vibrating Machine With Digital Timer & Mould ensures simple preparation and absolute compaction. It can prevent impacts and vibrations. The timer is provided for a punctual functionality.

Product Specification :

Phase: SINGLE PHASE

Condition: New

Vibrating Range: 4-5 mm

Motor Power: 1/2 HP

Usage/Application: Laboratory

Power: 2-4 kw

Heavy-duty Construction and Reliable Performance

Engineered with a robust steel frame, this vibrating machine provides exceptional stability and durability during high-frequency operations. The powder-coated finish offers added protection against wear and corrosion, ensuring a longer service life even in demanding laboratory environments.

High Precision and Adjustable Settings

With adjustable amplitude from 0.5 mm to 1 mm and a timer range up to 99 minutes, the machine allows precise control over vibration intensity and duration. This ensures uniform compaction of concrete specimens, resulting in more consistent and accurate compressive strength test results.

User-Friendly Operation and Low Maintenance

The semi-automatic, timer-controlled design simplifies the operating process. Operators benefit from an intuitive interface outlined in a comprehensive manual, while the low maintenance requirements and noise-reducing features further enhance the machine's efficiency and usability.

FAQ's of Vibrating Machine:

Q: How do I operate the vibrating machine for cement concrete specimens?

A: To use the vibrating machine, securely place the prepared moulds on the tabletop, set the desired amplitude and timer, and then start the motor using the control system. The included operating manual provides step-by-step guidance for safe and efficient operation.

Q: What is the maximum load capacity on the table and how many cubes can I prepare per batch?

A: The machine's tabletop supports a maximum load of 140 kg and can process up to six cement concrete cubes per batch, making it highly productive for laboratory applications.

Q: When should I perform maintenance on the vibrating machine?

A: Maintenance is minimal; however, periodic inspection of the grease lubrication system and cleaning of the air-cooled components are recommended. Refer to the manual for a preventive maintenance schedule and best practices to keep the machine running optimally.

Q: Where can the machine be installed and what type of power supply is needed?

A: This model is floor-mounted for stability and requires a 220 V AC power supply. With a convenient two-meter power cable, it is suitable for most laboratory or testing facility setups in India.

Q: What benefits does the timer-controlled system offer during specimen preparation?

A: The integrated timer allows users to precisely control the vibration duration, ensuring uniform compaction of concrete cubes and improving the reliability and repeatability of compressive strength test results.

Q: Is the machine suitable for all laboratory operating environments?

A: Yes, designed for high accuracy and low noise, the machine operates effectively within temperatures from 0C to 50C, making it well-suited for diverse laboratory conditions.

Q: What accessories are included, and how are they packaged?

A: Each machine is supplied with cube moulds and an operating manual. All components are meticulously packed in a durable wooden box to guarantee safe transport and delivery.
