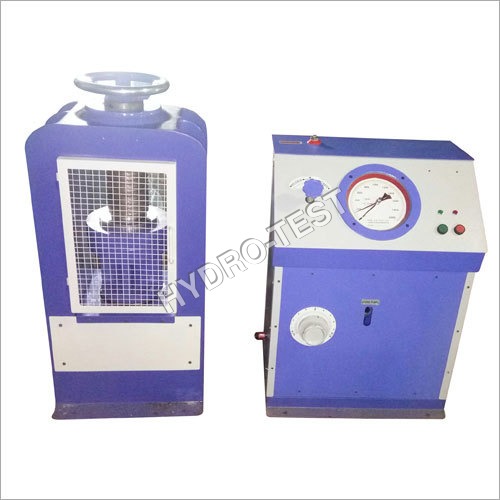

Concrete Testing Machine

Name: Concrete Testing Machine
Brand: HYDRO-TEST INSTRUMENTS

Get a Price/Quote

MOQ : 1 Piece

Concrete Testing Machine Specification

Test Range
0 - 2000 kN

Accuracy
1% of indicated load

Frequency
50 Hz

Mounting Type
Floor Mounted

Operating Voltage
220-240 V AC

Power Supply
220V AC, 50 Hz

Response Time
Instantaneous

Number of Specimens
1 per cycle

Measuring Range
0-2000 kN

Temperature
10C to 40C

Equipment Type
Compression Testing Machine

Hardness
High-grade Steel Construction

Resolution
0.1 kN

Interface Type
Manual/Optional Digital Interface

Automation Grade
Manual / Semi-Automatic

Display Type
Analog / Digital

Humidity
Up to 90% RH (non-condensing)

Usage
Industrial

Port Size
Standard

Features
Heavy duty construction, Overload protection, Calibration certificate included, Easy operation

Application
Compression Strength Testing of Concrete Cubes & Cylinders

Specimen Size
150 mm x 150 mm x 150 mm

Max Height
350 mm (maximum vertical space)

Capacity
2000 kN (200 Tons)

Machine Weight
Approx. 400 kg

Test Speed
50 mm/min (adjustable)

Test Width
150 mm

Test Stroke
180 mm

Control Mode
Manual / Semi-Automatic

Material of Body
Heavy mild steel reinforced

Color
Industrial Blue/ Grey

Load Measuring System
Hydraulic with bourdon tube gauge or digital load cell

Safety Features
Overload, Over-travel & pressure relief

Finish
Powder Coated

Piston Stroke
180 mm

Oil Reservoir Capacity
10 litres

Platen Size
222 mm diameter

Concrete Testing Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
50 Pieces Per Month

Delivery Time
1 Week

Sample Available
No

Packaging Details
Wooden boxes

Main Domestic Market
All India

About Concrete Testing Machine

Hydro-Test Instruments is manufacturing and supplying premium quality Concrete Testing Machine which is widely used for testing the flexual as well as compressive strength of concrete. It is also ideal for checking the workability, unit weight, self-consolidating passing ability, air content and consolidation. Our offered machine is robust in construction, reliable, easy to use, install as well as maintain. Apart from this, the said products test if the concrete or cement is permeable or not. Concrete Testing Machine is suitable for checking the quality, soundness, specific gravity, physical & chemical aspect of concrete. Furthermore, it has simple features that make the operation easy and efficient. Our machine helps in knowing the consistency as well as expansion limit of the concrete effectively.

Advanced Testing Performance

Designed to deliver reliable, instantaneous results for concrete strength assessments, this testing machine ensures accuracy and repeatability, meeting demands of industrial and laboratory applications. Its 2000 kN capacity suits a broad range of testing scenarios, while robust safety features guarantee secure operation for every use.

Built for Reliability and Safety

The machine's reinforced mild steel body and powder-coated finish combine durability with corrosion resistance. Comprehensive safety features such as overload, over-travel, and pressure relief mechanisms protect both operator and equipment, providing peace of mind during intensive testing processes.

Flexible Operation and User-Friendly Design

With its adjustable test speed, manual or semi-automatic control, and options for analog or digital display, this testing equipment adapts seamlessly to user requirements. Floor mounting and a convenient oil reservoir further support easy setup and consistent operation in various environments.

FAQ's of Concrete Testing Machine:

Q: How does the Concrete Testing Machine measure compression strength accurately?

A: The machine employs a hydraulic load measuring system with either a bourdon tube gauge or a digital load cell, providing precise load measurements within a 1% margin of error and a 0.1 kN resolution, ensuring high accuracy for reliable compression strength results.

Q: What types and sizes of specimens can be tested with this equipment?

A: It is designed for compression testing of concrete cubes and cylinders up to 150 mm x 150 mm x 150 mm, allowing testing of a single specimen per cycle within a maximum vertical space of 350 mm.

Q: When is calibration or maintenance recommended for the machine?

A: Regular calibration is advised as per usage intensity-typically annually or according to internal lab schedules. Each machine comes with a calibration certificate, and periodic maintenance ensures optimal performance and longevity.

Q: Where is this Concrete Testing Machine typically used?

A: Its rugged construction and versatile design make it suitable for use in industrial settings, construction material laboratories, and onsite field locations throughout India.

Q: What safety features are included to protect users and the machine?

A: The machine includes overload, over-travel, and pressure relief systems that protect against excessive loads, piston extension, and pressure levels, ensuring safe operation and extending equipment lifespan.

Q: How is the testing process conducted with this machine?

A: Operators place a concrete specimen on the 222 mm platen, set the desired testing speed (adjustable up to 50 mm/min), and initiate the compression cycle using the manual or semi-automatic controls. Results are displayed instantly on either an analog or digital interface.

Q: What are the benefits of using this particular model for concrete testing?

A: Users benefit from precise, fast, and reliable results, robust safety mechanisms, and a user-friendly interface. Its adaptability for manual or semi-automatic operations, alongside easy maintenance and heavy-duty construction, makes it ideal for rigorous testing environments.
